Envoy Sandbox로 손쉽게 필터 기능 확인해보기

Posted
By rumi
5 min read
Envoy Sandbox로 손쉽게 필터 기능 확인해보기

개요

  • Envoy에서 제공하는 샌드박스 Docker Compose를 사용해서 특정 기능들을 확인하는 환경을 쉽게 설정합니다.
  • 해당 포스팅에서는 CORS Filter, Redis Filter, MySQL Filter 기능을 샌드박스 환경에서 확인하고자 합니다.

Sandbox 환경 구성방법

공식문서 설정방법

  1. Docker 설치
  2. Docker Compose 설치
  3. Git 설치
  4. Envoy 예제 레파지토리 클론
    • /envoy/examples 경로에서 아래 실습을 시작합니다.

a) CORS Filter

0. envoy 설정 확인

  • /envoy/examples/cors/backend/envoy.yaml
    • “/cors/disabled”는 CORS 비활성화
    • “/cors/restricted”는 envoyproxy.io 오리진 확인
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42

route_config:
  name: local_route
  virtual_hosts:
  - name: www
    domains:
    - "*"
    ...
    routes:
    - match:
        prefix: "/cors/open"
      route:
        cluster: backend_service
    - match:
        prefix: "/cors/disabled"
      route:
        cluster: backend_service
      typed_per_filter_config:
        envoy.filters.http.cors:
          "@type": type.googleapis.com/envoy.extensions.filters.http.cors.v3.CorsPolicy
          filter_enabled:
            default_value:
              numerator: 0
              denominator: HUNDRED
    - match:
        prefix: "/cors/restricted"
      route:
        cluster: backend_service
      typed_per_filter_config:
        envoy.filters.http.cors:
          "@type": type.googleapis.com/envoy.extensions.filters.http.cors.v3.CorsPolicy
          allow_origin_string_match:
          - safe_regex:
              regex: .*\.envoyproxy\.io
          allow_methods: "GET"
    - match:
        prefix: "/"
      route:
        cluster: backend_service
http_filters:
- name: envoy.filters.http.cors
  typed_config:
    "@type": type.googleapis.com/envoy.extensions.filters.http.cors.v3.Cors

1. frontend 실행

1
2
3
4

# /envoy/examples/cors/frontend
> docker compose pull
> docker compose up --build -d
> docker compose ps

2. backend 실행

  • 여기까지 총 4개의 컨테이너가 실행됩니다.
1
2
3
4

# /envoy/examples/cors/backend
> docker compose pull
> docker compose up --build -d
> docker compose ps

3. 기능 테스트

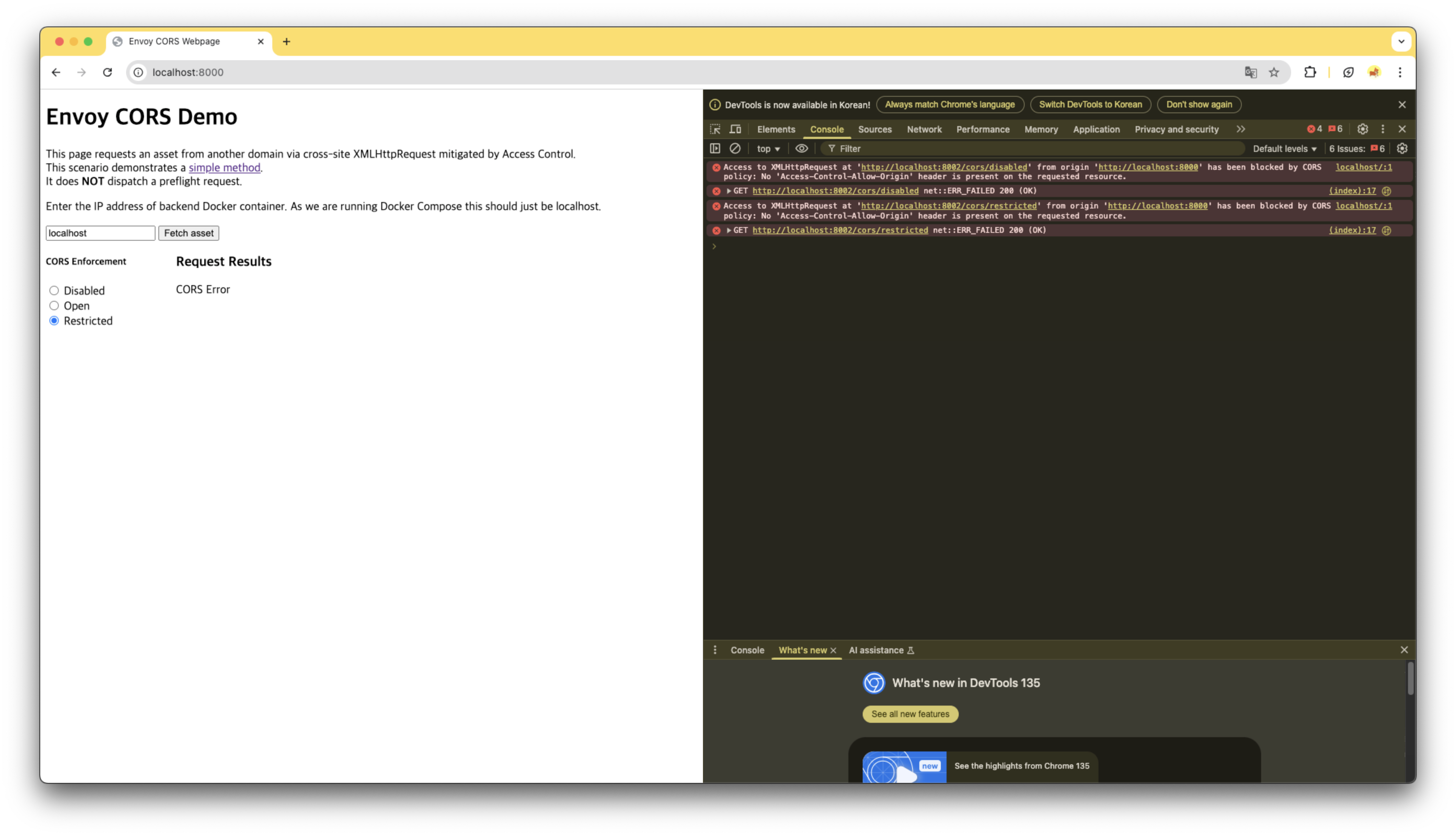

  • http://localhost:8000 경로별 테스트
  • CORS Enforcement를 변경하며 경로별 CORS 필터를 확인합니다.
    • Disabled, Restricted는 의도대로 실패합니다. envoy-cors

4. 결과 확인

  • http://localhost:8003/stats 통계 확인
1
2

http.ingress_http.cors.origin_invalid: 7
http.ingress_http.cors.origin_valid: 6

b) Redis Filter

0. envoy 설정 확인

  • /envoy/examples/redis/envoy.yaml
1
2
3
4
5
6
7
8
9
10
11

filter_chains:
- filters:
  - name: envoy.filters.network.redis_proxy
    typed_config:
      "@type": type.googleapis.com/envoy.extensions.filters.network.redis_proxy.v3.RedisProxy
      stat_prefix: egress_redis
      settings:
        op_timeout: 5s
      prefix_routes:
        catch_all_route:
          cluster: redis_cluster

1. Redis 컨테이너 실행

1
2
3
4

# /envoy/examples/redis
> docker compose pull
> docker compose up --build -d
> docker compose ps

2. Redis 커맨드 실행

1
2
3
4

> docker run --rm --network host redis:latest redis-cli -h localhost -p 1999 set foo foo
> docker run --rm --network host redis:latest redis-cli -h localhost -p 1999 set bar bar
> docker run --rm --network host redis:latest redis-cli -h localhost -p 1999 get foo
> docker run --rm --network host redis:latest redis-cli -h localhost -p 1999 get bar

3. egress 통계 확인

  • http://localhost:8001/stats?usedonly&filter=redis.egress_redis.command
  • 필터에서 설정한 ‘stat_prefix=egress_redis’ 이름으로 통계를 확인합니다.
1
2
3
4
5
6

redis.egress_redis.command.get.success: 2
redis.egress_redis.command.get.total: 2
redis.egress_redis.command.set.success: 2
redis.egress_redis.command.set.total: 2
redis.egress_redis.command.get.latency: P0(nan,0) P25(nan,0) P50(nan,0) P75(nan,0) P90(nan,0) P95(nan,0) P99(nan,0) P99.5(nan,0) P99.9(nan,0) P100(nan,0)
redis.egress_redis.command.set.latency: P0(nan,0) P25(nan,0) P50(nan,0) P75(nan,0) P90(nan,0) P95(nan,0) P99(nan,0) P99.5(nan,0) P99.9(nan,0) P100(nan,0)

c) MySQL Filter

0. envoy 설정 확인

  • /envoy/examples/mysql/envoy.yaml
  • ‘mysql_proxy’, ‘tcp_proxy’ 2개를 같이 사용하고, ‘egress_mysql’, ‘mysql_tcp’ 통계를 얻습니다.
1
2
3
4
5
6
7
8
9
10
11

filter_chains:
- filters:
  - name: envoy.filters.network.mysql_proxy
    typed_config:
      "@type": type.googleapis.com/envoy.extensions.filters.network.mysql_proxy.v3.MySQLProxy
      stat_prefix: egress_mysql
  - name: envoy.filters.network.tcp_proxy
    typed_config:
      "@type": type.googleapis.com/envoy.extensions.filters.network.tcp_proxy.v3.TcpProxy
      stat_prefix: mysql_tcp
      cluster: mysql_cluster

1. MySQL 컨테이너 실행

1
2
3
4

# /envoy/examples/redis
> docker compose pull
> docker compose up --build -d
> docker compose ps

2. MySQL 커맨드 실행

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

> docker run --rm -it --network mysql_default mysql:5.7 mysql -h proxy -P 1999 -u root --skip-ssl

mysql> CREATE DATABASE test;
mysql> USE test;
mysql> CREATE TABLE test ( text VARCHAR(255) );
mysql> SELECT COUNT(*) FROM test;
+----------+
| COUNT(*) |
+----------+
|        0 |
+----------+
mysql> INSERT INTO test VALUES ('hello, world!');
mysql> SELECT COUNT(*) FROM test;
+----------+
| COUNT(*) |
+----------+
|        1 |
+----------+
mysql> exit

3. egress 통계 확인

  • ‘queries_parse_error’로 실패한 쿼리 개수도 알 수 있습니다.
1
2
3
4
5
6
7
8
9
10

curl -s "http://localhost:8001/stats?filter=egress_mysql"
mysql.egress_mysql.auth_switch_request: 1
mysql.egress_mysql.decoder_errors: 0
mysql.egress_mysql.login_attempts: 1
mysql.egress_mysql.login_failures: 0
mysql.egress_mysql.protocol_errors: 0
mysql.egress_mysql.queries_parse_error: 2
mysql.egress_mysql.queries_parsed: 9
mysql.egress_mysql.sessions: 1
mysql.egress_mysql.upgraded_to_ssl: 0

4. TCP 통계 확인

1
2
3
4
5
6
7
8
9
10
11
12
13

tcp.mysql_tcp.downstream_cx_no_route: 0
tcp.mysql_tcp.downstream_cx_rx_bytes_buffered: 0
tcp.mysql_tcp.downstream_cx_rx_bytes_total: 537
tcp.mysql_tcp.downstream_cx_total: 1
tcp.mysql_tcp.downstream_cx_tx_bytes_buffered: 0
tcp.mysql_tcp.downstream_cx_tx_bytes_total: 889
tcp.mysql_tcp.downstream_flow_control_paused_reading_total: 0
tcp.mysql_tcp.downstream_flow_control_resumed_reading_total: 0
tcp.mysql_tcp.early_data_received_count_total: 0
tcp.mysql_tcp.idle_timeout: 0
tcp.mysql_tcp.max_downstream_connection_duration: 0
tcp.mysql_tcp.upstream_flush_active: 0
tcp.mysql_tcp.upstream_flush_total: 0

마치며

  • Envoy의 샌드박스 환경을 통해 테스트하려는 필터를 간편하게 구성하고 검증할 수 있었습니다. 특히, 자주 마주치는 CORS 오류를 Envoy에서 직접 설정해보며, 별도의 API Gateway 없이도 애플리케이션 단에서 유연하게 제어할 수 있다는 가능성을 확인할 수 있었습니다.

참고문서

Envoy Sandbox
HTTP Filter - CORS
Network Filter - Redis proxy
Network Filter - MySQL proxy
Network Filter - TCP proxy

Study, Istio
